Cooler Design
Global Heat Transfer's Design of the Compact Heat Exchangers program is based on Aluminum Plate and Bar
Cores
and MK1, MK4 and MK6 Cores as well as GHT-H,
GHT-O and GHT-L Tubes for Radiators.
|
 |

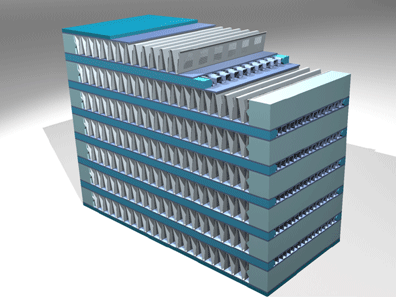

Aluminum
Plate and Bar Cores
are used for
Oil Coolers,
Charge Air Coolers,
Gas Coolers and
Water/Glycol Coolers. |
 |

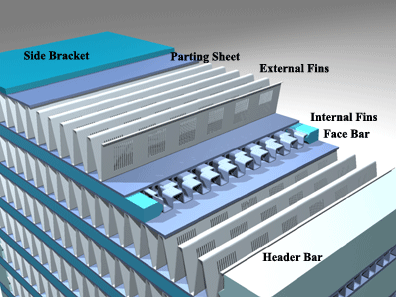

Plate and Bar Cores
are defined by the internal and external fin description as well as the fin
thickness, fin density, separating wall, face and header bars. |
 |

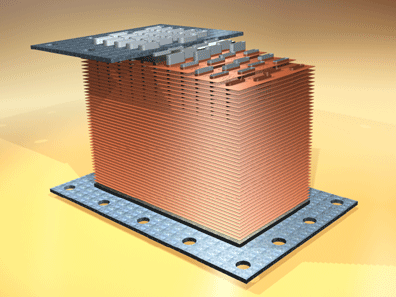

MK1, MK4 and
MK6 Cores
are mainly used in Radiator designs. |
 |

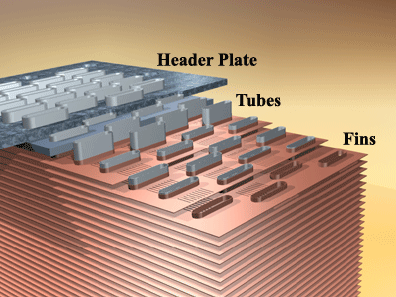

Radiator cores as shown, consist of tubes and external fins. |
|
